No products

Other ICs

CY7C162 Ram

$5.95 (tax excl.)

CY7C162-45

16K x 4 CMOS Static ram

With seperate I/O

28 pin .3" ceramic package

Ram

2148 Ram

$5.75 (tax excl.)

NMC2148HN

1024 X 4 HMOS Static Ram

18 Pin DIP Package

Ram

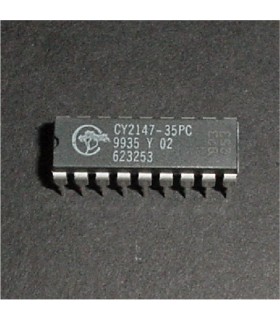

2147 Ram

$1.47 (tax excl.)

2147

High Speed 4096 X 1 Bit Static Ram

18 Pin DIP Package

Various MFG

Ram

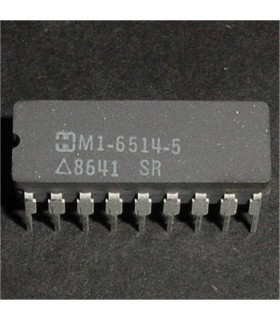

6514 Ram

$5.25 (tax excl.)

M1-6514-5

CMOS 1024 x 4 Static low power ram

Used on Williams boards such as Robotron, Sinistar, Joust, Stargate and Bubbles.

These are also used on some Taito games such as ZooKeeper and Qix.

Subs 5114, 5514

18 Pin Ceramic DIP Package

Ram

6114 Ram

$1.95 (tax excl.)

UM6114-120
2K X 8 CMOS Static Ram
18 pin dip package
Subs 5114, 5514, 6514 Ram

Ram

MBM10480-15

$0.90 (tax excl.)

MBM10480-15

16K x 1 ECL Static Ram

20 Pin Ceramic DIP Package

Ram

7489 Ram

$6.95 (tax excl.)

7489 Ram

NOS
16 x 4 Ram
16 Pin DIP package

Ram

2114 Ram

$3.65 (tax excl.)

1K X 4 Static Ram
18 Pin DIP Package
Used on hundreds of arcade boards
Subs 9114

NOS Part, various mfg.

Monitor components

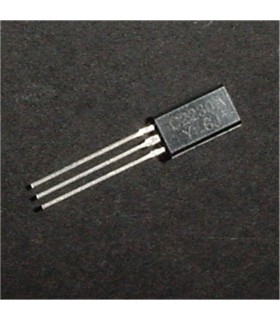

2SC2230

$0.95 (tax excl.)

2SC2230

Sound Output NPN Transistor

TO-93(mod) Package

* Used on Sanyo 20EZ Audio Amp PCB

Monitor components

2SC1106

$6.45 (tax excl.)

2SC1106

Regulator transistor used on Electrohome GO7 monitor X02.

TO-3 Package

Monitor components

LA7830

$3.95 (tax excl.)

LA7830

Color TV Vertical Deflection Output Circuit

7 Pin SIP Package

Monitor components

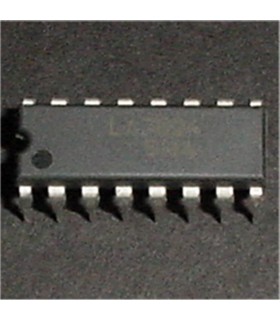

LA7824

$4.00 (tax excl.)

LA7824

Synchronization and deflection circuit for CRT displays

16 Pin DIP Package

Monitor components

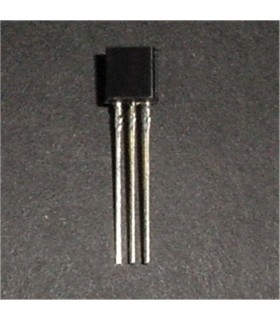

2SA673

$0.50 (tax excl.)

2SA673

PNP Low Frequency Amplifier

TO-92 Package

Use on Electrohome GO7 Chassis @ X102, X104, X106, X303

Monitor components

2SD1879

$3.95 (tax excl.)

2SD1879

NPN Horizontal Deflection Output Transistor

TO3-PML Package

Monitor components

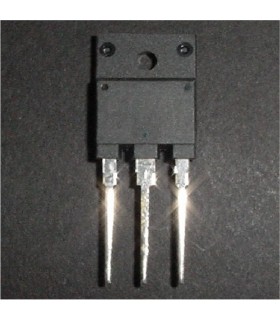

2SD1885

$4.25 (tax excl.)

2SD1885

Horizontal Deflection Output Transistor

To-3PML Package

Monitor components

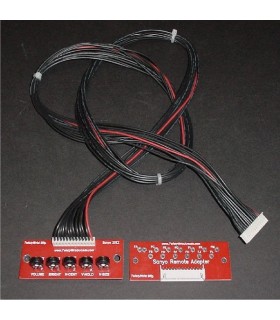

Sanyo 20EZ Remote Pot Kit

$28.65 (tax excl.)

Sanyo 20EZ Remote Pot Kit.

This kit relocates the five pots from the rear of the monitor to a remote board. The remote board includes a detatchable 3 foot cable and can be mounted for easy access to the pots without moving the machine or removing the rear door. Includes adapter pcb, remote pot pcb, cable and mounting hardware.

Processors & 40 pin ICs

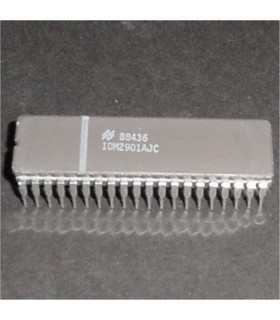

2901 BitSlice 4-Bit MPU

$4.25 (tax excl.)

IDM2901AJC

4-Bit Bipolar Microprocessor Slice

Used on Atari Vector games such as Tempest, Battlezone & Red Baron

40 Pin Ceramic DIP Package

Processors & 40 pin ICs

68A00 MPU

$7.00 (tax excl.)

68A00 MPU

1.5 Mhz
40 Pin Dip Package

Suitable sub for 6800 (1 Mhz)

Processors & 40 pin ICs

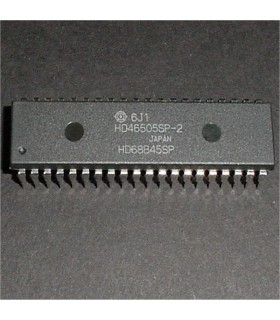

MC6845 / HD46505

$4.25 (tax excl.)

HD46505 / HD6845Video Output Graphics Controller - CRT Controller

Processors & 40 pin ICs

D8049

$6.15 (tax excl.)

D8049HC

8-Bit Microcontroller - Microcomputer

40 Pin DIP Package

These will sub the 8035 on Donkey Kong.

Subs M58715 used on Mario Brothers pcb with minor modifications (requires a patched rom and tie pin 7 high)

Processors & 40 pin ICs

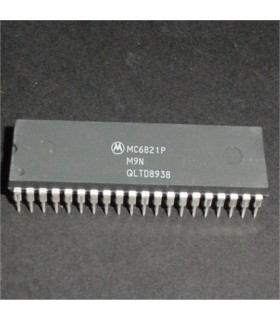

6821 (refurbs)

$4.98 (tax excl.)

6821 PIA

Used refurbished pulls
40 Pin Dip Package

Processors & 40 pin ICs

8031 CPU

$1.25 (tax excl.)

8031 CPU
8-Bit CPU
40 Pin Ceramic DIP Package
Used Pulls

Processors & 40 pin ICs

68B21 Refurbished & Tested

$4.98 (tax excl.)

68B21 PIA

Used refurbished and tested pulls (misc mfg)
40 Pin Dip Package

Processors & 40 pin ICs

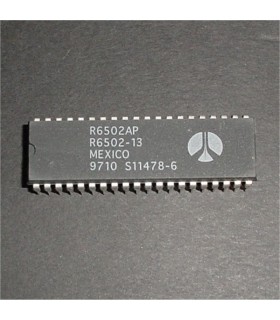

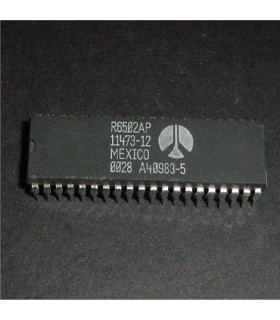

6502A MPU

$4.75 (tax excl.)

6502A
8-Bit Microprocessor CPU

Used on many arcade boards.
40 Pin DIP Package

Refurbished used pulls , may have minor cosmetic blemishes.

Eproms

NOS 2532A EPROM

$5.75 (tax excl.)

TMS2532A-45 Eprom
4K X 8
24 Pin DIP Package
NOS Part.

Please be sure your programmer can handle 2532A.

Eproms

NOS 2764 EPROM

$3.85 (tax excl.)

2764 Eprom

NMC27C64Q200
8K X 8
28 Pin DIP Package
NOS Part

Eproms

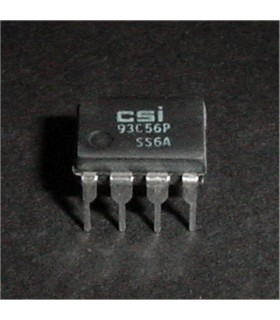

93C56 EEPROM

$0.75 (tax excl.)

93C56 EEPROM

Serial Electrically-Erasable PROM (EEPROM)

256 x 8 Configuration

8 Pin DIP Package

Eproms

93C46 EEPROM

$0.75 (tax excl.)

93C46

64 x 16-Bit Serial EEPROM

8 Pin DIP Package

Eproms

2732 EPROM, NOS

$6.45 (tax excl.)

2732 Eprom
4K X 8
24 Pin DIP Package
New Old Stock

Eproms

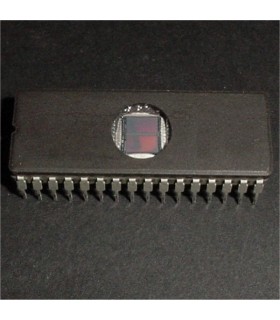

27C010 EPROM

$2.50 (tax excl.)

27C010 Eprom
128K X 8
32 Pin DIP Package
Used Pulls

Eproms

27C040 EPROM

$4.38 (tax excl.)

27C040 Eprom
512K X 8
32 Pin DIP Package
NOS

Sub 27C4001

Eproms

NOS 2716 Eprom

$4.28 (tax excl.)

ET2716Q-1 Eprom
2K X 8
24 Pin DIP Package
NOS Part

Monitor components

Reproduction GO7 Neckboard

$39.75 (tax excl.)

Reproduction Electrohome GO7-CBO 19" neck board.

Easy to replace that cracked neckboard by simply soldering a few wires. These pcb's are stronger than the original one and are more resistant to cracking. Uses standard size pots that are readily available.

BALLY / MIDWAY

Reproduction Tron Optical Encoder PCB (also fits DOT)

$43.95 (tax excl.)

Tron & Discs of Tron Optical Encoder PCB

New reproduction of original design. Direct fit, no modifications needed.

PCB is slightly smaller than original. IC's are socketed for easy replacment.

Replaces Midway PN A082-91418-D000 & A084-91482-A000

TWA Repro Mfg.

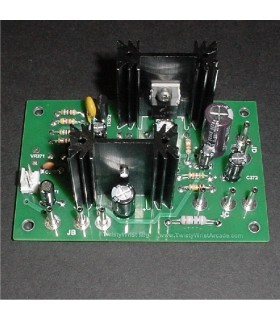

Nintendo Audio Amplifier

$39.95 (tax excl.)

Reproduction Nintendo audio amp pcb used on sanyo monitors.

No modifications needed, installs exactly like original. Modern look with that classis Nintendo sound.

Replace your old failing amp or just keep one around as a spare.

Monitor components

Sanyo 20EZ Remote Pot Kit

$28.65 (tax excl.)

Sanyo 20EZ Remote Pot Kit.

Top sellers

.156 KK Series

PIN- .156 FEMALE 18-20AWG TIN Trifurcon

$0.18 (tax excl.)

Molex Part Number 08-50-0189
Series Trifurcon™ 6838
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 18-20 AWG
Contact Finish Tin
Contact Finish Thickness 100µin (2.54µm)

.100 KK Series

TERMINAL .100 FEMALE 22-30AWG TIN

$0.21 (tax excl.)

Molex Part Number 08-52-0123
Series KK®
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 22-30 AWG
Contact Finish Tin
Contact Finish Thickness 100µin (2.54µm)

.084 MLX Series

.084 Pin, Female

$0.15 (tax excl.)

Molex Part Number 02-08-1004
Wire Size (AWG): 14-20 AWG
Gender: Female
Contact Plating: Tin
Contact Material: Phosphor Bronze
Termination Style: Crimp

.084 MLX Series

.084 Pin, Male

$0.15 (tax excl.)

Molex Part Number 02-08-2006
Wire Size (AWG): 14-20 AWG
Gender: Male
Contact Plating: Tin
Contact Material: Phosphor Bronze
Termination Style: Crimp

.093 Connectors

TERMINAL .093 FEMALE 14-20AWG TIN

$0.15 (tax excl.)

Molex
Series 1189
Type Power
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Finish Tin
Contact Finish Thickness 20µin (0.51µm)

.093 Connectors

TERMINAL .093 MALE 14-20AWG TIN

$0.15 (tax excl.)

Molex
Series 1190
Type Power
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 18-22 AWG
Material Brass
Plating Tin
Plating - Thickness 20µin (0.51µm)

.156 KK Series

TERMINAL .156 FEMALE 18-24AWG GOLD

$0.22 (tax excl.)

Molex Part Number 08-58-0121
Series KK® 2478
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Gold
Contact Finish Thickness 0.381µin

IC Sockets, Dual Wipe

16 Pin .3" Socket

$0.40 (tax excl.)

16 Pin Dual Wipe Socket

DIP .3" Row Spacing

.156 KK Series

PIN- .156 FEMALE 22-26AWG TIN Trifurcon

$0.15 (tax excl.)

Molex Part Number 08-52-0124
Series Trifurcon™ 6838
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Tin
Contact Finish Thickness 100µin (2.54µm)

.062 Connectors

PIN- .062 FEMALE 18-24AWG TIN

$0.21 (tax excl.)

Pin, Female .062

Wire Gauge: 18-24 awg

Contact Termination: Crimp

Plating: Tin

Series 1625

Molex P/N: 02-06-1103

.062 Connectors

PIN- .062 MALE 18-24AWG TIN

$0.21 (tax excl.)

Pin, Male .062

Wire Gauge: 18-24 awg

Contact Termination: Crimp

Plating: Tin

Series 1625

Molex P/N: 02-06-2103

IC Sockets, Dual Wipe

14 Pin .3" Socket

$0.29 (tax excl.)

14 Pin Dual Wipe Socket

DIP .3" Row Spacing

Ram

2114 Ram

$3.65 (tax excl.)

1K X 4 Static Ram
18 Pin DIP Package
Used on hundreds of arcade boards
Subs 9114

NOS Part, various mfg.

Ram

4116 Ram

$2.48 (tax excl.)

4116 Ram

16K X 1 Dynamic Ram
16 Pin DIP Package

IC Sockets, Dual Wipe

24 Pin .6" Socket

$0.65 (tax excl.)

24 Pin Dual Wipe Socket

DIP .6" Row Spacing

IC Sockets, Dual Wipe

22 Pin .4" Socket

$0.65 (tax excl.)

22 Pin Dual Wipe Socket

DIP .4" Row Spacing
